產品型號：YGZPF
執行標準：Q/IRMV3－2008

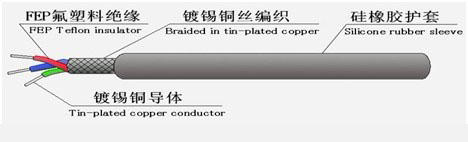

產品特性：
1、額定電壓：300/500V
2、工作溫度：-60～+200℃
3、導 體：絞合鍍錫銅線
4、絕 緣：FEP 鐵氟龍
5、護 套：硅橡膠
6、顏 色：紅/黃/蘭/白/黑/黃綠/棕/綠等
特點/用途：
在長期潮濕環境中使用，電性能及防水、防霉性能優越。彎曲性能優良，最小彎曲半徑為電纜外徑16倍，可移動使用。
使用于交流額定電壓450/750V及以下各種移動式電機、鋼鐵、航空、電廠、石化等高溫環境中使用。
交貨要求：
按雙方合同協議商定，允許不小于10米的短段交貨。其數量應不超過交貨總長度的10%。
規格結構及技術參數：
芯數×截面 （mm2） | 導體結構 | 絕緣厚度 | 絕緣外徑 | 護套厚度 | 平均外徑 | 20 ℃時導體直流電阻 |
1×0.4 | 48/0.10 | 0.50 | 1.80 | 0.80 | 4.0 | 53.1 |
1×0.75 | 19/0.23 | 0.60 | 2.35 | 0.65 | 4.10 | 24.6 |
1×1.5 | 19/0.32 | 0.60 | 2.80 | 1.20 | 5.80 | 12.7 |
3×0.08 | 7/0.12 | 0.20 | 0.76 | 0.70 | 3.40 | 245 |
4×0.08 | 7/0.12 | 0.20 | 0.76 | 0.80 | 4.0 | 245 |
5×0.08 | 7/0.12 | 0.20 | 0.76 | 0.80 | 4.20 | 245 |
6×0.08 | 7/0.12 | 0.20 | 0.76 | 1.10 | 5.20 | 245 |
2×0.12 | 7/0.15 | 0.25 | 0.95 | 0.70 | 3.90 | 163 |
3×0.12 | 7/0.15 | 0.25 | 0.95 | 0.70 | 4.0 | 163 |
4×0.15 | 7/0.15 | 0.25 | 0.95 | 1.0 | 4.80 | 163 |
5×0.12 | 7/0.15 | 0.25 | 0.95 | 0.90 | 4.90 | 163 |
6×0.12 | 7/0.15 | 0.25 | 0.95 | 1.0 | 5.40 | 163 |
7×0.12 | 7/0.15 | 0.25 | 0.95 | 1.0 | 5.50 | 163 |
2×0.2 | 7/0.20 | 0.25 | 1.10 | 0.80 | 4.30 | 90.4 |
3×0.2 | 7/0.20 | 0.25 | 1.10 | 0.80 | 4.50 | 90.4 |
4×0.2 | 7/0.20 | 0.25 | 1.10 | 1.0 | 5.20 | 90.4 |
5×0.2 | 7/0.20 | 0.25 | 1.10 | 1.0 | 5.50 | 90.4 |
6×0.2 | 7/0.20 | 0.25 | 1.10 | 1.2 | 6.20 | 90.4 |
7×0.2 | 7/0.20 | 0.25 | 1.10 | 1.2 | 6.20 | 90.4 |
8×0.2 | 7/0.20 | 0.25 | 1.10 | 1.2 | 6.50 | 90.4 |
10×0.2 | 7/0.20 | 0.25 | 1.10 | 1.40 | 7.60 | 90.4 |
16×0.2 | 7/0.20 | 0.25 | 1.10 | 1.50 | 8.60 | 90.4 |
19×0.2 | 7/0.20 | 0.25 | 1.10 | 1.50 | 9.0 | 90.4 |
2×0.35 | 19/0.16 | 0.25 | 1.30 | 1.0 | 5.0 | 53.1 |
3*0.35 | 19/0.16 | 0.25 | 1.30 | 1.0 | 5.40 | 53.1 |
4×0.35 | 19/0.16 | 0.25 | 1.30 | 1.20 | 6.20 | 53.1 |
5×0.35 | 19/0.16 | 0.25 | 1.30 | 1.20 | 6.50 | 53.1 |
6×0.35 | 19/0.16 | 0.25 | 1.30 | 1.20 | 7.0 | 53.1 |
7×0.35 | 19/0.16 | 0.25 | 1.30 | 1.20 | 7.0 | 53.1 |
8×0.35 | 19/0.16 | 0.25 | 1.30 | 1.40 | 7.80 | 53.1 |
2×0.5 | 19/0.18 | 0.25 | 1.40 | 1.0 | 5.20 | 40.1 |
3×0.5 | 19/0.18 | 0.25 | 1.40 | 1.0 | 5.50 | 40.1 |
4×0.5 | 19/0.18 | 0.25 | 1.40 | 1.10 | 6.10 | 40.1 |
5×0.5 | 19/0.18 | 0.25 | 1.40 | 1.20 | 6.80 | 40.1 |
6×0.5 | 19/0.18 | 0.25 | 1.40 | 1.30 | 7.20 | 40.1 |
7×0.5 | 19/0.18 | 0.25 | 1.40 | 1.30 | 7.40 | 40.1 |
2×0.75 | 19/0.23 | 0.25 | 1.70 | 1.20 | 6.30 | 24.6 |
3×0.75 | 19/0.23 | 0.25 | 1.70 | 1.40 | 7.0 | 24.6 |
4×0.75 | 19/0.23 | 0.25 | 1.70 | 1.60 | 8.0 | 24.6 |
5×0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 8.20 | 24.6 |
6×0.75 | 19/0.23 | 0.25 | 1.70 | 1.50 | 8.60 | 24.6 |
7×0.75 | 19/0.23 | 0.25 | 1.70 | 1.60 | 8.80 | 24.6 |
2×1 | 19/0.26 | 0.25 | 1.80 | 1.20 | 6.60 | 20.4 |
3×1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 7.30 | 20.4 |
4×1 | 19/0.26 | 0.25 | 1.80 | 1.40 | 7.80 | 20.4 |
7×1 | 19/0.26 | 0.25 | 1.80 | 1.60 | 8.60 | 20.4 |
2×1.5 | 19/0.32 | 0.30 | 2.25 | 1.30 | 7.70 | 12.7 |
3×1.5 | 19/0.32 | 0.30 | 2.25 | 1.40 | 8.20 | 12.7 |
4×1.5 | 19/0.32 | 0.30 | 2.25 | 1.40 | 8.50 | 12.7 |
7×1.5 | 19/0.32 | 0.30 | 2.25 | 1.60 | 10.50 | 12.7 |
2×2.5 | 19/0.41 | 0.40 | 2.80 | 1.50 | 9.20 | 7.43 |
3×2.5 | 19/0.41 | 0.40 | 2.80 | 1.50 | 9.60 | 7.43 |
4×2.5 | 19/0.41 | 0.40 | 2.80 | 1.60 | 10.60 | 7.43 |
7×2.5 | 19/0.41 | 0.40 | 2.80 | 1.80 | 12.6 | 7.43 |
